JIS G3461 STB35 steel pipe is a carbon steel pipe used for boilers and heat exchangers, adapting to high temperature and high pressure working environments.
GNEE supplies JIS G3461 STB35 heat exchanger steel pipe with a wall thickness range of 0.6mm to 18mm, providing sufficient strength and corrosion resistance, and is widely used to transport fluids such as oil, natural gas, and water.
Chemical Composition of JIS G3461 STB35 Seamless Boiler Tube
| C | P | S | ||||||||
| STB35 | S, E | 0.18Max | 0.35Max | 0.30~0.60 | 0.035Max | 0.035Max | - | - | - | - |
Mechanical Properties of JIS G3461 STB35 heat exchanger tube
|
N/mm2 {kgf/mm2} |
Yield point N/mm2 {kgf/mm2} |
||||
|
Outside diameter 20mm or over |
Outside diameter 10mm or over to and excl. 10mm |
Outside diameter under 10mm |
|||
|
No. 11/12 test piece |
No. 11 test piece |
No. 11 test piece |
|||
|
STB35 |
340{35}min. |
175{18} min.. |
35 min. |
30 min |
27 min |
19.05mm – 168.3mm
2.0mm – 14 mm
max 19000mm

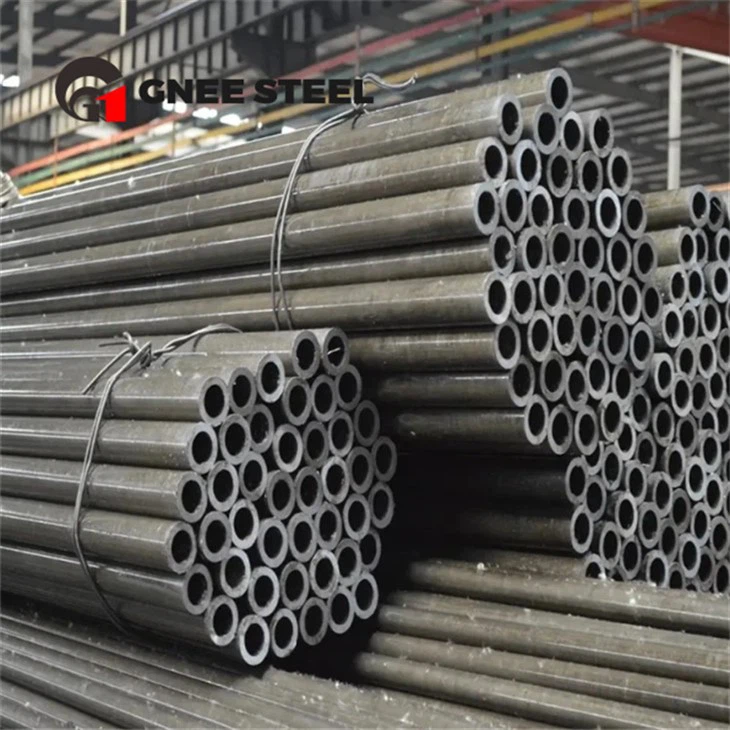

JIS G3461 STB35 Carbon Steel Boiler Tubes
GNEE is a professional steel pipe exporter with 12 production lines and an annual output of 50,000 tons. It has obtained the ISO9001 international quality management system certificate.
A.Generally, our delivery time is within 7-45 days.
